Compose continues to expand to more platforms and with it, it is getting easier and easier to use. To show how versatile it is,
I decided to implement a simple project to showcase how Compose can work to implement a project in a multiplatform approach.
The project I decided to do was Minesweeeper, since it is a simple yet entertaining game known worldwide.
Android
Desktop
iOS
The Goal
Implement Minesweeper
Single-source-of-thruth for assets
Game logic should be completely crossplatform
UI code should use Compose to reuse as much code as possible
Target Desktop(Linux/Mac/Windows), Android and iOS
The Approach

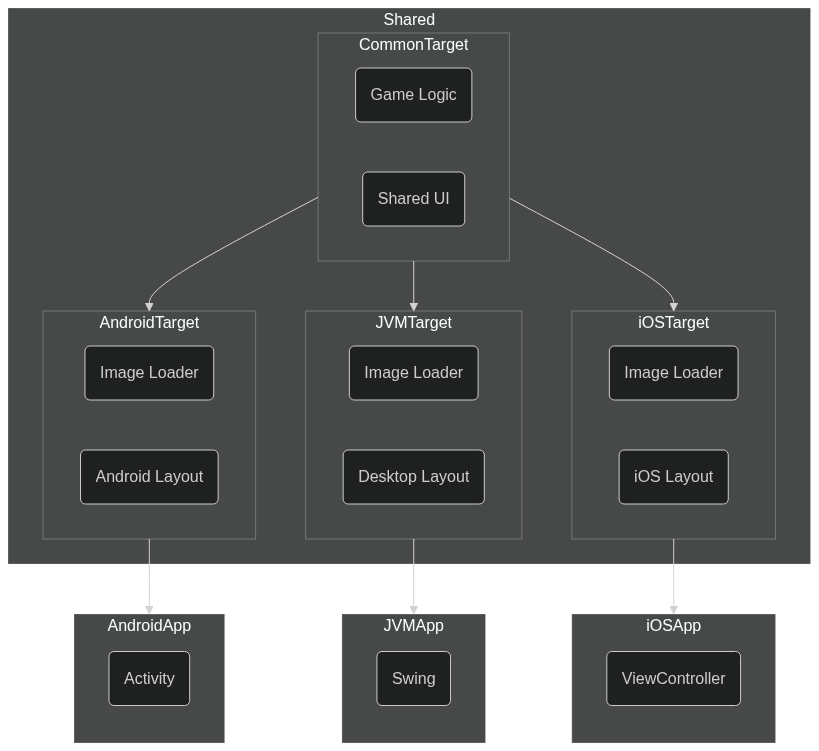

The application is split into a gradle modules for each target with one shared module that holds the game logic and shared UI code.
You can see that all the game logic and most UI code is implemented in the common code. Then each platform’s target
provides two things, an Image Loader and a Compose layout. The Image Helper helps to provide a platform specific approach
to load the images from the local files. Each target also exposes the game through a layout written in Compose that adapts
to that specific platform screen.
Finally, there is module for each platform that bundles the game into their respective packages.
Implementation
The implementation is for the most part using the regular Compose APIs. Due to this I will not go into details about how this was implemented.
If you want to see more detils, you can take a look at the code for the common code,
the android layout,
the desktop layout
and the iOS layout.
Final Words
For the most-part, the project achieved it’s goal. The game is fully playable across all supported platforms. You can find the most up-to-date information in the project’s repo.
The performance on Android and Desktop seem to be stable, although on iOS I am noticing some hitching. I will look into profile this further to determine the root cause.
A big win was that all game logic and most of the UI code(expect for image loading) was done in shared code. There were no complexities or unexpected issues to address when
due to the multiplatform nature of the project.
An area where I encountered problems was with regards to loading the bitmaps to display. As of now, there is not a well supported and unified approach to load images asynchronously in
multiplatform code. Due to this I had to use expect/actual functions to provide three different implementations. In this case, this was not a blocker, but it does show that
we are in the early stages of the Compose ecosystem.
For some projects I have been working with, I have been wanting to migrate them from RxJava2 to Coroutines. I personally
like coroutines, and I would lie if I said that I was not a little bias. But I wanted to understand how RxJava and
Coroutines performed and get some real numbers that would hopefully show the benefits of coroutines.
The Kotlin’s page has an example of how coroutines are lightweight
and they are able to launch 100 thousand concurrent jobs. This seems impressive but it does not show how it compared
to other solutions nor how their concurrency model scales.
To get this data I wanted to simulate some tasks that were similar to something you would find in a real world scenario.
I decided to test a network call followed by two DB operations. And then to scale this problem, I wanted to launch as
many of this tasks as I could concurrently to see how they would behave when executed using suspending functions
and when run through RxJava2.
To do this I created this small application. You can set the number of concurrent tasks to launch, if you want to run
them serially or concurrently and if you would like to run them using RxJava or Coroutines.
The app will measure them memory consumption before and after running the tasks, so you can see the change in memory
usage. It also provides a button to kill the app as a way to flush the memory by killing the process.
Methodology
A single use-case would be as follow:
Launch app.
Update the number of tasks to execute
Set the mode to Rx or Coroutines
Press Run.
Wait for the tasks to complete running.
Save the duration and memory information.
Kill the app.
I will then run this same operations but I will change the # of concurrent tasks. For each # of concurrent tasks, I will
run the operations once in Rx mode and then in Coroutine mode.
Data collected
You can find the spreadsheet alongside with some graphs here.
The experiment was run on three targets. A Pixel 4 XL Emulator, a real Pixel 2 and a Galaxy S21. Each target has a table that shows the numbers for duration to execute all tasks in milliseconds
and a table for the change in total memory usage at the end of the operation. The delta columns show the change in value from the Rx case to the coroutine case.
The Pixel4 XL target represents an ideal situation, as it uses the desktop’s CPU as well as having access to lower
latency network due to the wired internet connected. Both other physical devices run on a fully charged device with a
wifi network connection.
You can find the spreadsheet alongside with some graphs here.
Analysis
This data shows that overall, the tasks took similar or less to complete in RxJava. The execution time seems to scale
linearly as more tasks are created. At low task counts, the difference is not mayor, but as the concurrent tasks
increases, the RxJava implementation continues to execute the tasks faster than coroutines.
This is true up to a point. In the Pixel 4 XL Emulator, when running between 7500 and 10000 concurrent tasks, the
application will crash due to not been able to allocate any more threads. This is not the case with coroutines, as the
data shows we have been able to run up to 20000 tasks without signs of a problem.
If we look at the memory consumption we can clearly see what is going on. During every single test, coroutines consumed
less memory compared to RxJava, not only that but as the number of tasks increased, the memory consumption remained
mostly constant. This was not the case for RxJava, for which the memory consumption increased linearly with the number
of concurrent tasks. If we look at the logs we can clearly see this:
Caused by: java.lang.OutOfMemoryError: pthread_create (1040KB stack) failed: Try again
at java.lang.Thread.nativeCreate(Native Method)
at java.lang.Thread.start(Thread.java:730)
at java.util.concurrent.ThreadPoolExecutor.addWorker(ThreadPoolExecutor.java:941)
at java.util.concurrent.ThreadPoolExecutor.ensurePrestart(ThreadPoolExecutor.java:1582)
at java.util.concurrent.ScheduledThreadPoolExecutor.delayedExecute(ScheduledThreadPoolExecutor.java:313)
at java.util.concurrent.ScheduledThreadPoolExecutor.schedule(ScheduledThreadPoolExecutor.java:550)
at java.util.concurrent.ScheduledThreadPoolExecutor.submit(ScheduledThreadPoolExecutor.java:651)
at io.reactivex.internal.schedulers.NewThreadWorker.scheduleActual(NewThreadWorker.java:145)
at io.reactivex.internal.schedulers.IoScheduler$EventLoopWorker.schedule(IoScheduler.java:253)
at io.reactivex.Scheduler.scheduleDirect(Scheduler.java:232)
...
...
Here we can see the follow. We see that the exception was OutOfMemoryError, which is very self-explanatory. This
happened in the pthread_create function, which is the native call to start a new thread. This function was called from
ThreadPoolExecutor.addWorker(), so we know we are trying to create a new thread in a thread pool. And this function
was called by RxJava’s NewThreadWorker.scheduleActual(), as it needed more workers to be able to execute the high
volume of concurrent tasks.
On the RxJava implementation, we are using the IO Scheduler, which is backed up by a ThreadPool. The problem is that as
more tasks are created, the thread-pool needs to create more workers to be able to handle the new tasks. Each thread is
heavy memory-wise as each thread needs to allocate their own stack in memory. Additionally, even though there are
multiple threads concurrently running, a lot of them will be blocked waiting for IO. The RxJava documentation mentions
the risk of OOM errors here: Note that this scheduler may create an unbounded number of worker threads that can result in system slowdowns or OutOfMemoryError.
In comparison, Kotlin coroutines do not see much of an increase in memory consumption. We see that there is an initial
increase and then there is an almost plateau. This is due to the different approach to concurrency used by Coroutines.
Coroutines are based on suspending function, which allows the process to stop a function(for example when needing to
wait for IO) and continue the execution of another function. In our app we are running all the tasks in the IO Dispatcher.
This dispatcher is also based on a thread pool, but these thread never have to be blocked, as when needing to wait for IO
the function can yield to the next function. This allows the threads to be a lot more efficient, and this is what JetBrains
was talking about when showing how coroutines are lightweight compared to threads.
Another difference is that by default, the IO Dispatcher is bounded to a maximum number of threads.
The number of threads used by tasks in this dispatcher is limited by the value of "kotlinx.coroutines.io.parallelism" (IO_PARALLELISM_PROPERTY_NAME) system property. It defaults to the limit of 64 threads or the number of cores (whichever is larger).
It is clear that the lightweight nature of coroutines allow them to scale much better than RxJava, but with a performance
hit as the tasks hit the limit on number of concurrent threads. But this performance hit is, in my opinion, a trade-off
I am willing to take to be able to reduce the memory footprint of the application I work on. At the end of the day,
different tools will work for different tasks, so it will be up to you to decide which tool fits your needs.
I know for me, I will continue to recommend Coroutines as my preferred solution for asynchronous tasks.
Final words
This work was inspired on the need to understand the trade-off between RxJava and Coroutines. I am way more familiar with
Coroutines than with RxJava, but I tried to do a good job at finding a good implementation that was roughly equivalent
between the two libraries.
I also know that there is RxJava3, but the code I was working on was based on RxJava2, hence the comparison here. Adding
an RxJava3 implementation should not be too complicated.
If you feel that there is a mistake on my methodology, or I there is a mistake, please let me
know so it can be addressed. You can contact@cramsan.com or at twitter at @cramsan_dev.
I can’t believe that I last updated this app on Sep 16, 2018. But with the release of the escalation update, I decided it was a good time to get back into updating this app. But I not only wanted to fix bugs here and there, I wanted to get back into listening to the community feedback and adding new features.
But in order to achieve some long term goals, I knew I needed to make some changes. Developing this app has taught me so things in the seven years of working on it and a lot of the early mistakes had started to really affect development speed. The lack of unit and integration test allowed regressions to get into the released app and even then, getting information about user crashes was only came from the Play Store. Overall, most of the problems with this app were due to a ver bad development process. This would cause a feedback look, since I was not willing to make bug changes due to the fear of breaking thing. So most of the changes that have been done over the last couple years were ad-hoc changes heavily guarded with null checks.
I wanted to change that, so I wanted to implement the following:
Add unit tests and UI tests
Enable a CI/CD mechanism
Update libraries and tools to their newer versions
Integrate a mechanism to get crash and diagnostic information
Add analytics to the app to better understand user behavior
I can happily say that I did achieve all the expected goals. The app now builds using Azure Pipelines and it is published to the Azure App Center with a Debug and Release apps. Unit tests are part of the build pipeline, UI tests are not integrated yet. The Debug app is published for devs and testers to use. While the release app is automatically uploaded to the Play Store’s private release channel.
Pipelines automatically building on every commit
Realtime time crash data with insights
Another great milestone was that all the app was migrated to Kotlin. This allowed me to easily integrate with my existing set of core Kotlin libraries. I am using the Azure App Center SDK to collect crash metrics and to get user insights.
To celebrate all these new changes. I also created a new website to send updates about this project. I am pretty happy with the result, but mostly I am excited what the future has in store for us.
